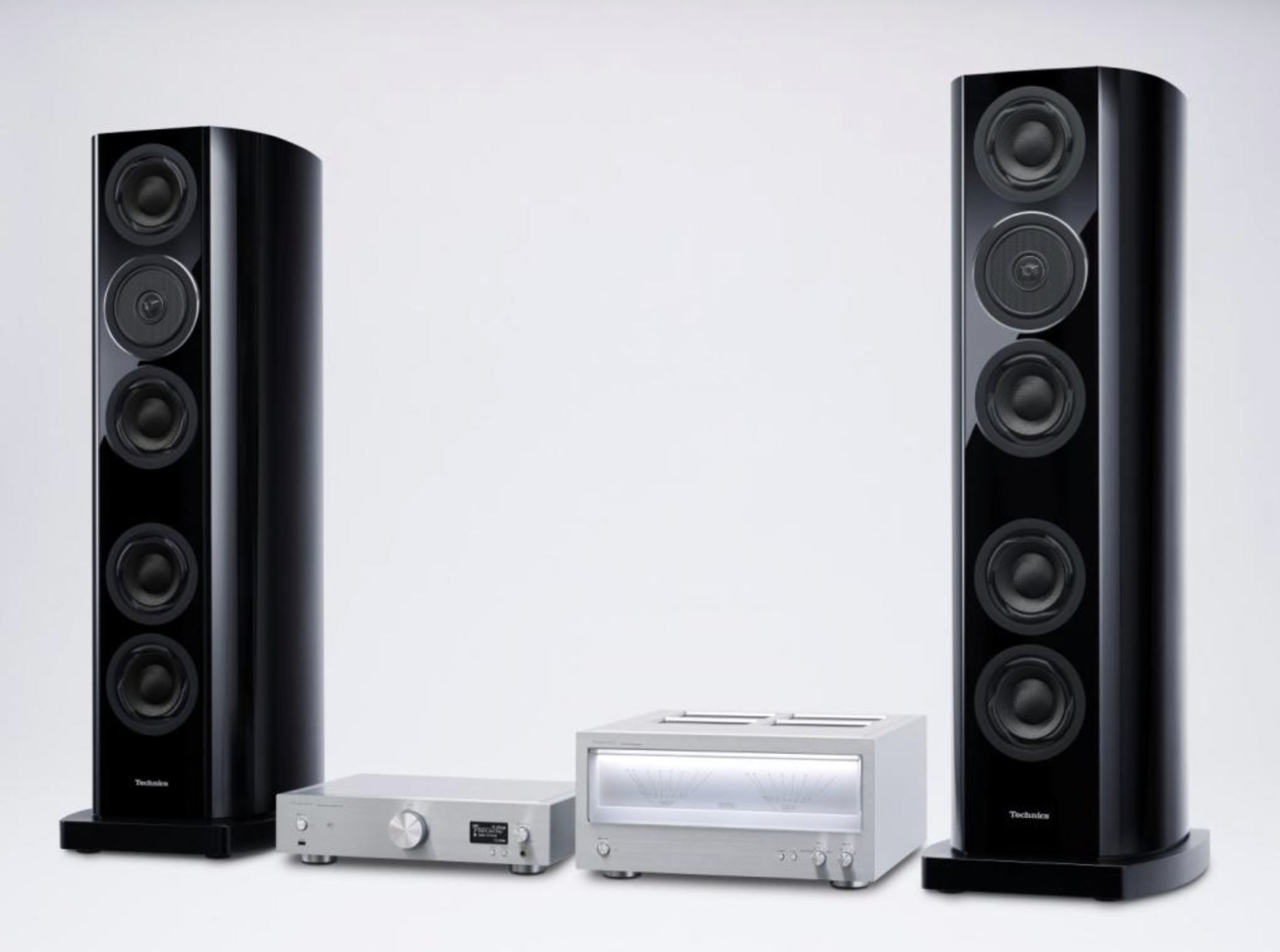

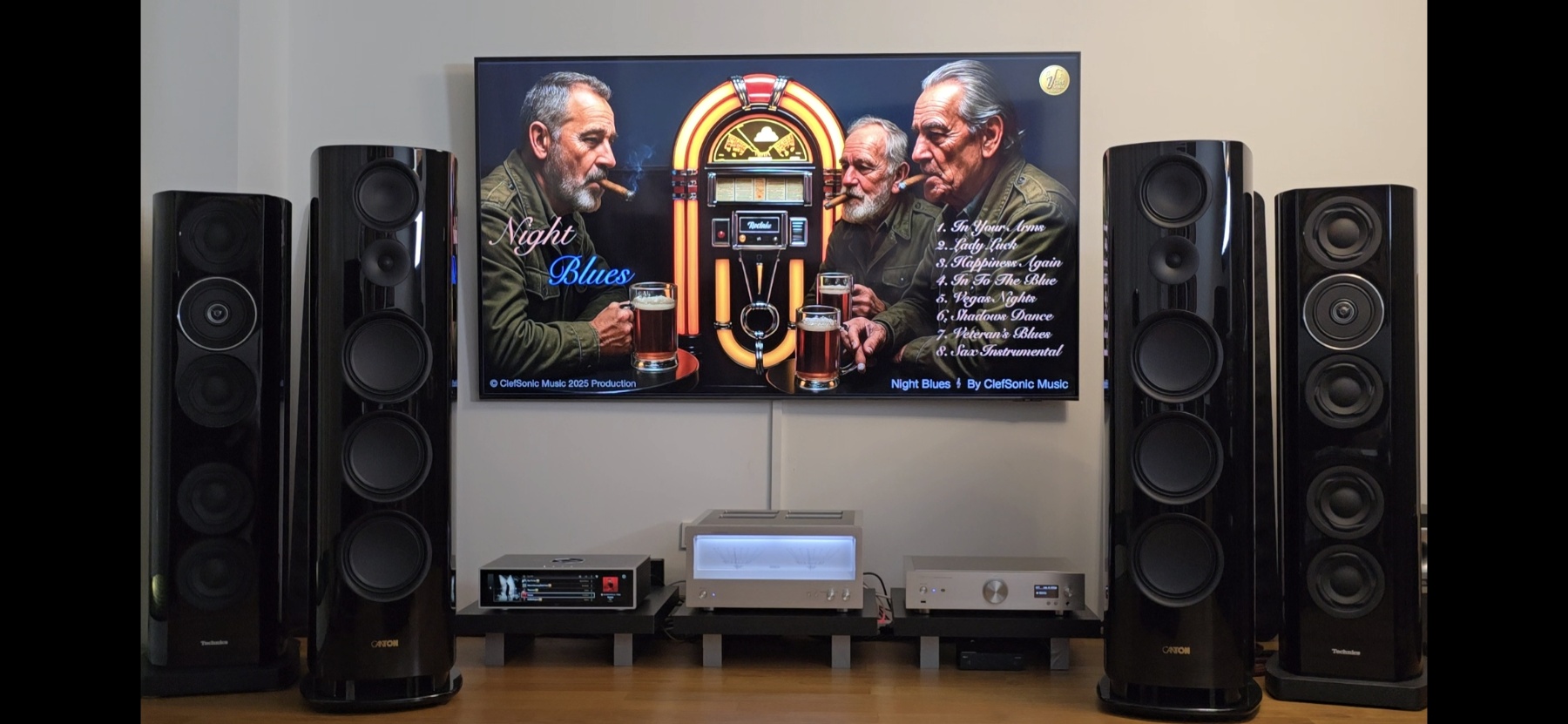

Technics SU-R1, SE-R1 + technics SB-R1 combo!

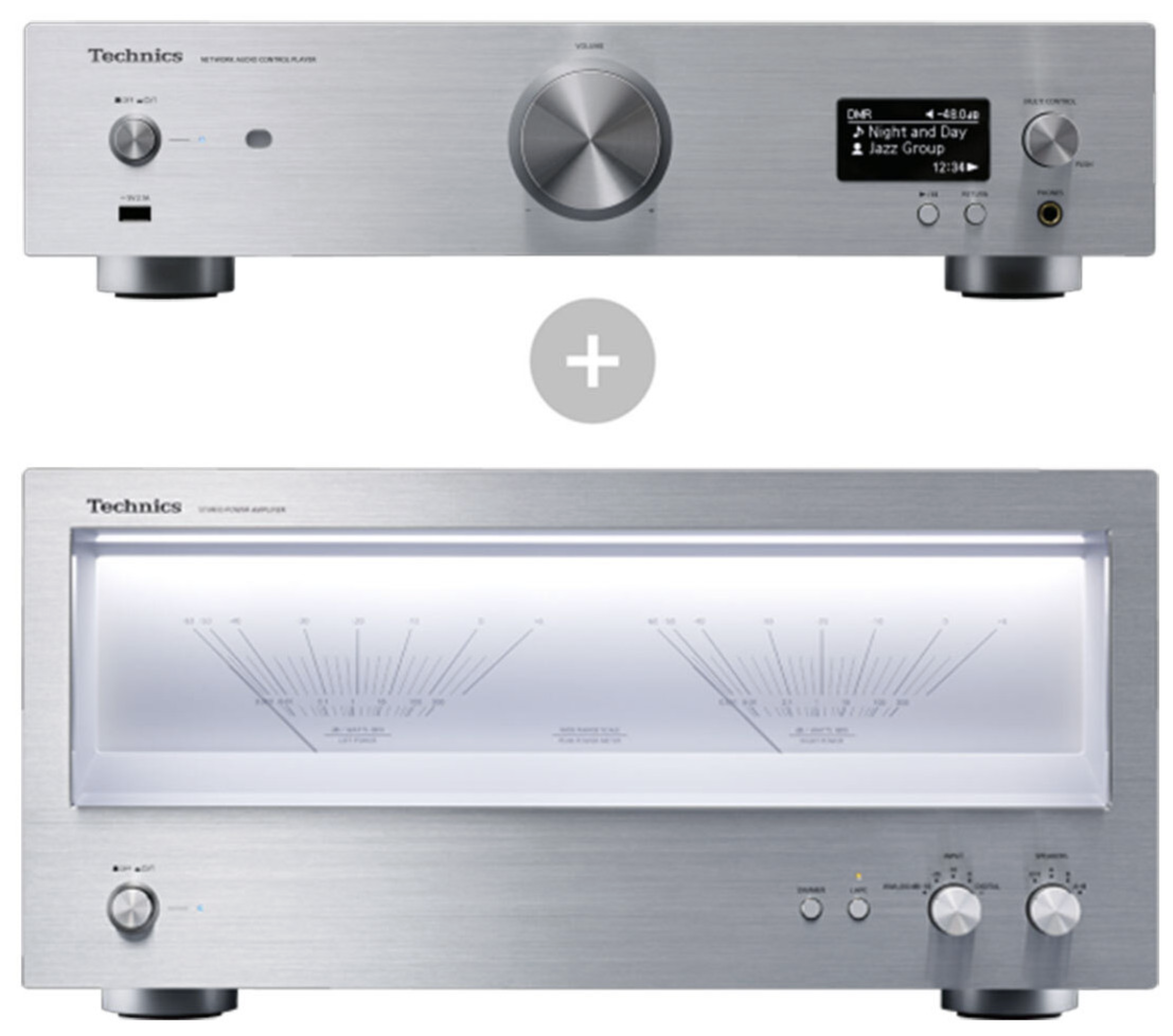

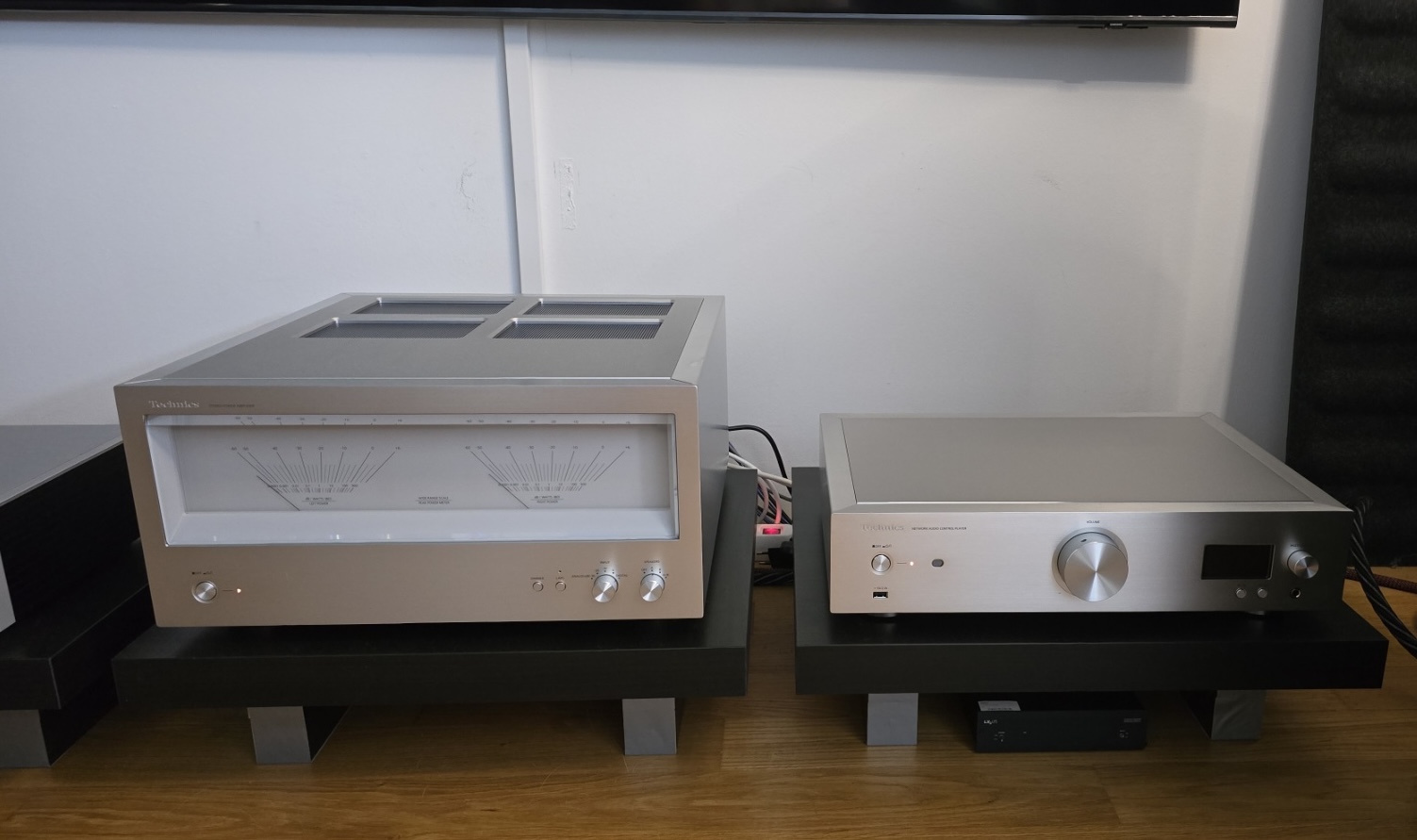

The Technics SU-R1 and SE-R1 are high-end components from Technics' Reference Class R1 Series, designed to deliver exceptional audio performance.

Technics SU-R1 Network Audio Control Player:

Frequency Response: 2 Hz to 90 kHz (-3 dB)

Dynamic Range (IHF-A):

• Balanced: 118 dB
• Unbalanced: 115 dB

Total Harmonic Distortion + Noise: 0.0008% (1 kHz, 0 dB)

Analog Input Terminals: Line x 2

Digital Input Terminals: AES/EBU Digital x 1, Coaxial Digital x 3, Optical Digital x 1, USB-A, USB-B

Supported Codecs via DLNA and USB-A:

• WAV: Yes (32, 44.1, 48, 88.2, 96, 176.4, 192 kHz / 16, 24 bit)
• FLAC: Yes (32, 44.1, 48, 88.2, 96, 176.4, 192 kHz / 16, 24 bit)
• DSD: Yes (2.8224 MHz, 5.6448 MHz)
• AIFF: Yes (32, 44.1, 48, 88.2, 96, 192 kHz / 16, 24 bit)
• ALAC: Yes (32, 44.1, 48, 88.2, 96 kHz / 16, 24 bit)
• AAC: Yes (32, 44.1, 48, 88.2, 96 kHz / 16-320 kbps)
• WMA: Yes (32, 44.1, 48 kHz / 16-320 kbps)
• MP3: Yes (32, 44.1, 48 kHz / 16-320 kbps)

Dimensions (W x H x D): 480 x 120 x 391 mm

Weight: Approximately 17 kg

Technics SE-R1 Stereo Power Amplifier:

The SE-R1 is a stereo power amplifier engineered to set new standards in digital amplification, employing state-of-the-art components and innovative technologies.

Accurate Digital Technology:

• JENO Engine (Jitter Elimination and Noise-shaping Optimization): Reduces jitter across the entire frequency range, reproducing natural and delicate nuances of music.
• GaN-FET Driver: Utilizes high-speed gallium nitride FET drivers with super-low resistance, enabling high-power amplification with outstanding linearity.
• LAPC (Load Adaptive Phase Calibration): Measures the amplifier's phase characteristics with each speaker it drives to achieve a flatter frequency response.
• Technics Digital Link: Transmits digital audio signals and volume control information directly to the power amplifier, minimizing degradation and ensuring superb stereo separation.

High-speed Silent Linear Power Supply: Ensures stable and clean power delivery to the amplifier circuits.

Battery Driven Clock Generator: Shields the clock circuit from AC line noise by using a battery-driven clock generator, providing a cleaner power supply to sensitive circuits.

Dual Mono Construction: Separates the left and right channel signal paths to eliminate interference and achieve clear stereo imaging.

High Rigidity Metal Double Chassis: Constructed with a 7-mm-thick aluminum plate to resist electromagnetic noise and reduce vibration.

Output Power:

• 150 W + 150 W (1 kHz, T.H.D. 0.5%, 8 Ω, 20 kHz LPF)
• 300 W + 300 W (1 kHz, T.H.D. 0.5%, 4 Ω, 20 kHz LPF)

Input Sensitivity / Input Impedance:

• Unbalanced: 1.2 V / 47 kΩ
• Balanced: 1.2 V / 47 kΩ

Frequency Response: 1 Hz to 90 kHz (-3 dB,

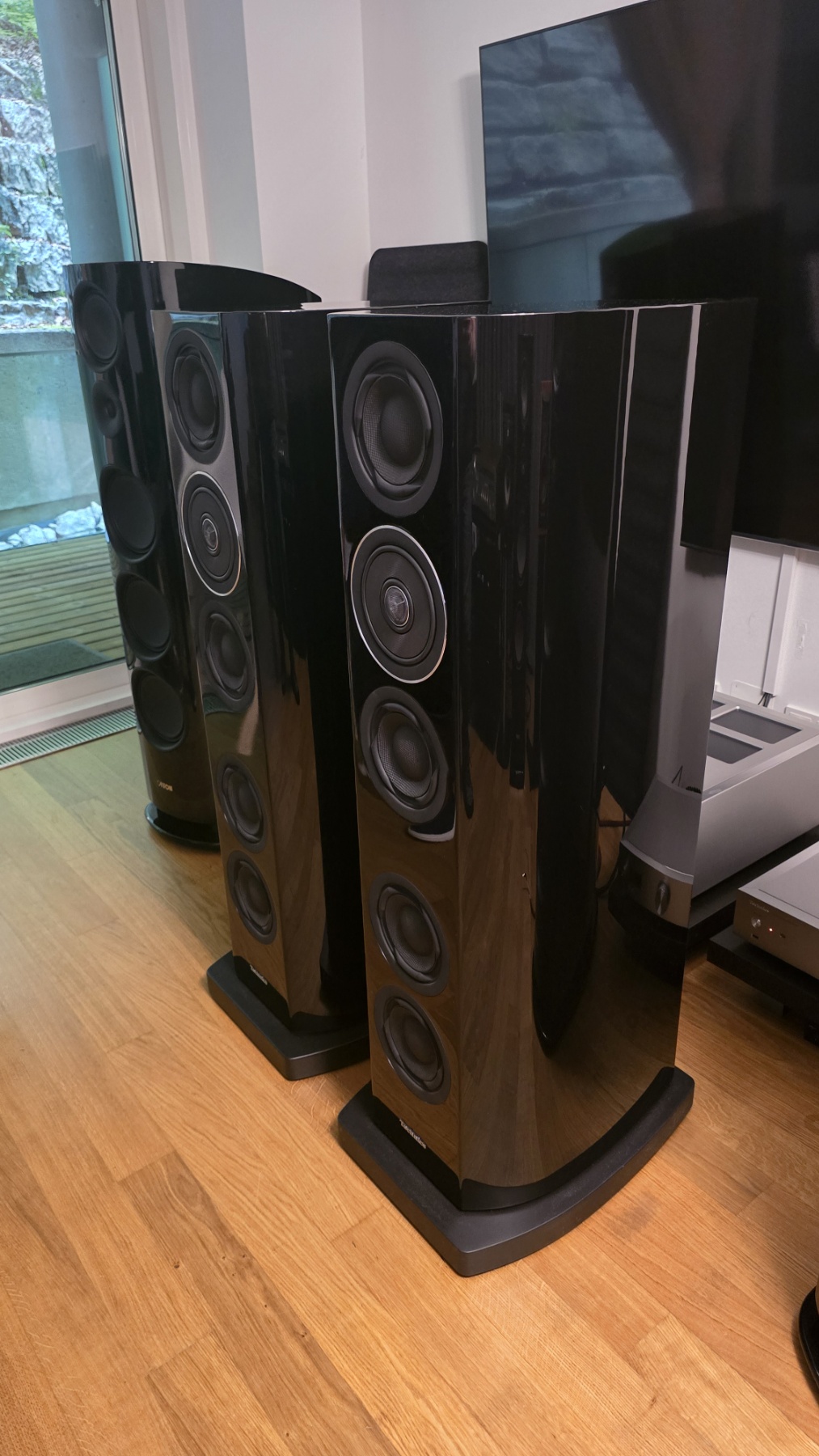

The Technics SB-R1 is a Reference Class speaker system designed to deliver exceptional sound quality through advanced acoustic engineering.

Key Features:

Point-Sound-Source Speaker System: Utilizes a flat coaxial two-way speaker unit, combining midrange and treble drivers, to achieve precise imaging and soundstage focus. This design ensures wave-fronts from the drivers arrive simultaneously at the listener's ears, regardless of position, simulating a single-point sound source.

Phase Precision Driver: Features a flat mid-range diaphragm with a sandwich construction of lightweight, high-rigidity carbon cloth skins and an aluminum honeycomb core. This design maintains pistonic motion over a wide frequency range, eliminating distortions caused by the 'cavity effect' found in conventional cone diaphragms.

Ultra Wide Range Reproduction: Equipped with a carbon graphite dome tweeter capable of reproducing frequencies up to 100 kHz, and a woofer extending down to 20 Hz, the SB-R1 covers the vast frequency spectrum of high-resolution audio sources. citeturn0search1

High Rigidity Entasis Form Cabinet: The cabinet features a 50-mm-thick baffle and side panels made from eight layers of MDF, forming a curved structure that suppresses unwanted vibrations and reduces internal and external diffraction and reflection. An internal partition divides the cabinet to eliminate low-order standing waves in the vertical direction. citeturn0search1

Low Distortion 16-cm Long Stroke Woofer: Developed to reproduce super-low frequencies with dramatically reduced distortion, this woofer delivers powerful, dynamic, and responsive bass. The push-pull edge design (Symmetrical Surround Technology, SST) cancels secondary harmonic distortion in the low-frequency range. citeturn0search1

High-Quality Network Circuit: Designed to maximize the performance of each speaker unit and achieve balanced sound, separate network boards for woofer, mid-range, and tweeter are optimally arranged inside the cabinet to prevent interference and minimize vibration effects. citeturn0search1the

Specifications:

Type: 3.5-way, 6-speaker, bass-reflex system (including coaxial 2-way for mid-range and tweeter)

Speaker Units:

• Woofers: Four 16 cm (6.5 inches) cone-type
• Midrange/Tweeter: One coaxial unit with a 16 cm (6.5 inches) flat-type midrange and a 2.5 cm (1 inch) dome-type tweeter

Crossover Frequencies: 300 Hz, 3 kHz

Frequency Range: 20 Hz to 100 kHz (-16 dB), 28 Hz to 90 kHz (-10 dB)

Sound Pressure Level: 88 dB/2.83V (1 m)

Impedance: 4 Ω

Input Power (IEC): 150 W (Rated), 300 W (Max)

Dimensions (W x H x D): 408 x 1260 x 522 mm (16 1/16 x 49 19/32 x 20 9/16 inches, including net and terminals)

Weight: Approximately 72 kg (159 lbs) per speaker

These features and specifications underscore the SB-R1's commitment to high-fidelity sound reproduction, making it a noteworthy choice for discerning audiophiles.
