Denon TU-QS10
Denon TU-QS10 for sale. Great condition
Specifications:
RDS ( Radio Data System)
EON - PTY , EON- TA , PS, PTY , CT, RT , TP, TA
Manually entering characters ( eight characters)
AM / FM station memory for 40 programs
Auto Preset Memory
Low impedance output ( 100 ohms)
RF attenuator
Variable six-speed capacitors
Built-in PLL for verbessertesInterferenzverhalten
2 antenna connectors
Double symmetrical MOS FET Mixer
AGC circuit
steel chassis
Massive front panel
Tuning range. . . . . . . . . . . . . . . . 87.50 MHz -108.00 MHz
Usable sensitivity (DIN). . 0.9 ? V ( 10.3 dBf )
( ? V at 75 ohms , 0 dBf -1016 W). . . . Mono 1.6 ? V ( 15.3 dBf ) Stereo 20 ? V ( 37.2 dBf )
To-noise ratio . . . . . . Mono 82 dB , Stereo 78dB
THD . . . . . . . . . . . . . . . . . . . . . Mono0 , 08 % (1 kHz, 100 % mod )
Stereo 0.12% (1 kHz, 90% Mod ) WIDE
Reception ratio . . . . . . . . . . . . . 1.5 dB
MW oppression. . . . . . . . . . . . . 50 dB
Image Rejection . . . . . . . . 90 dB
Intermediate frequency attenuation. . . . . . . 120 dB
Effective sensitivity . . . . . . . . . . 50 dB ( ± 400Hz ) , WIDE 60 dB ( ± 300
Hz) ,
Frequency response. . . . . . . . . . . . . . . . . 20 Hz - 15 kHz , ± 0.5 dB
Channel separation. . . . . . . . . . . . . . . . . 50 dB ( 1 kHz )
Tuning range. . . . . . . . . . . . . . . . 522 - 1611kHz
Usable sensitivity . . . . . . . . . 18 ? V
To-noise ratio . . . . . . 53 dB
Power supply. . . . . . . . . . . . . . . . . . . . . . 230 V, 50 Hz
Power consumption. . . . . . . . . . . . . 9 W
Dimensions. . . . . . . . . . . . . . . . . 434 x 135 x 337 mm (W x H x D)
Weight. . . . . . . . . . . . . . . . . . . . . . 6.3 kg
Hotline Order:
Mon - Fri: 07AM - 06PM
(+43) 660 742 0707

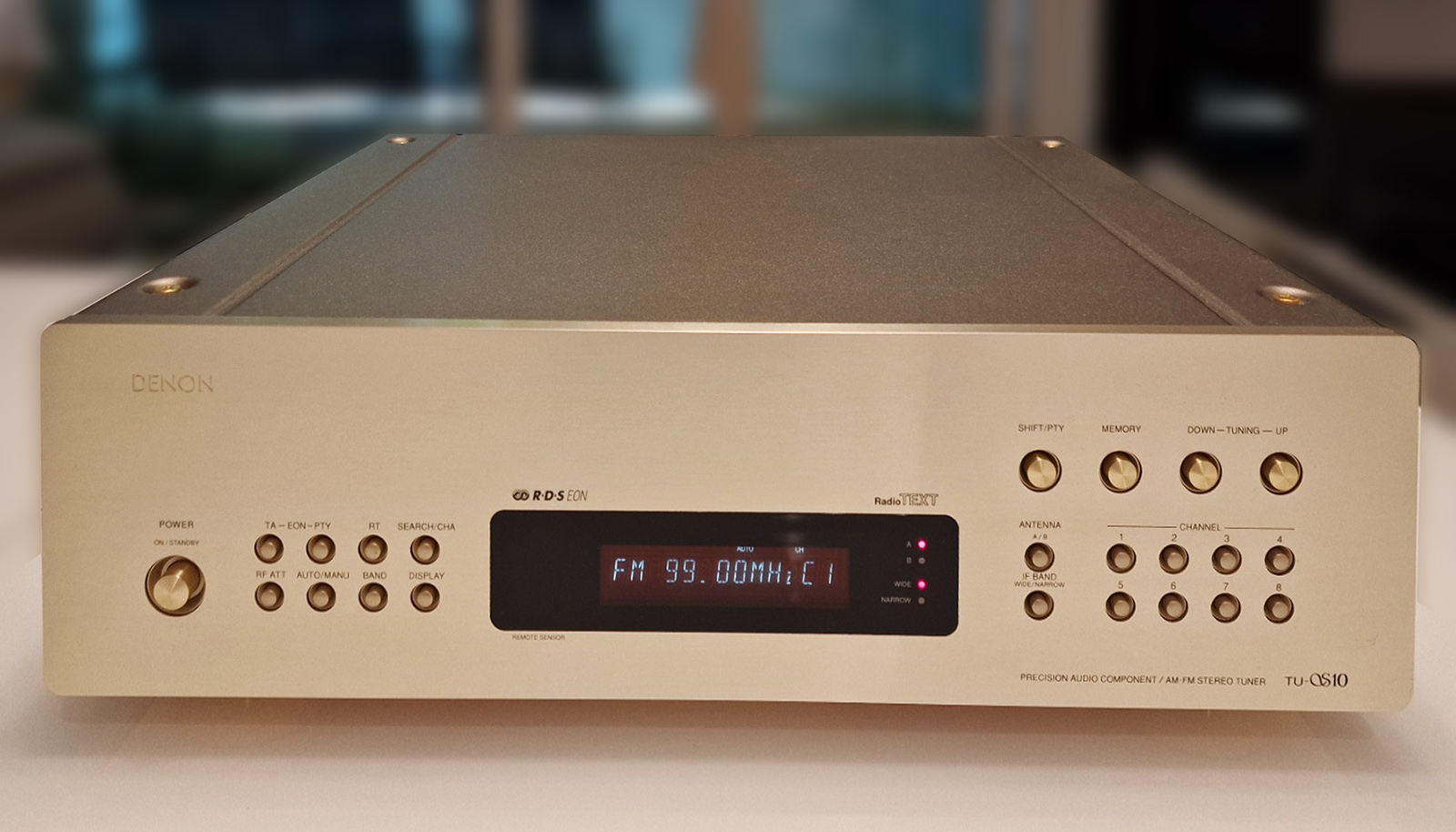

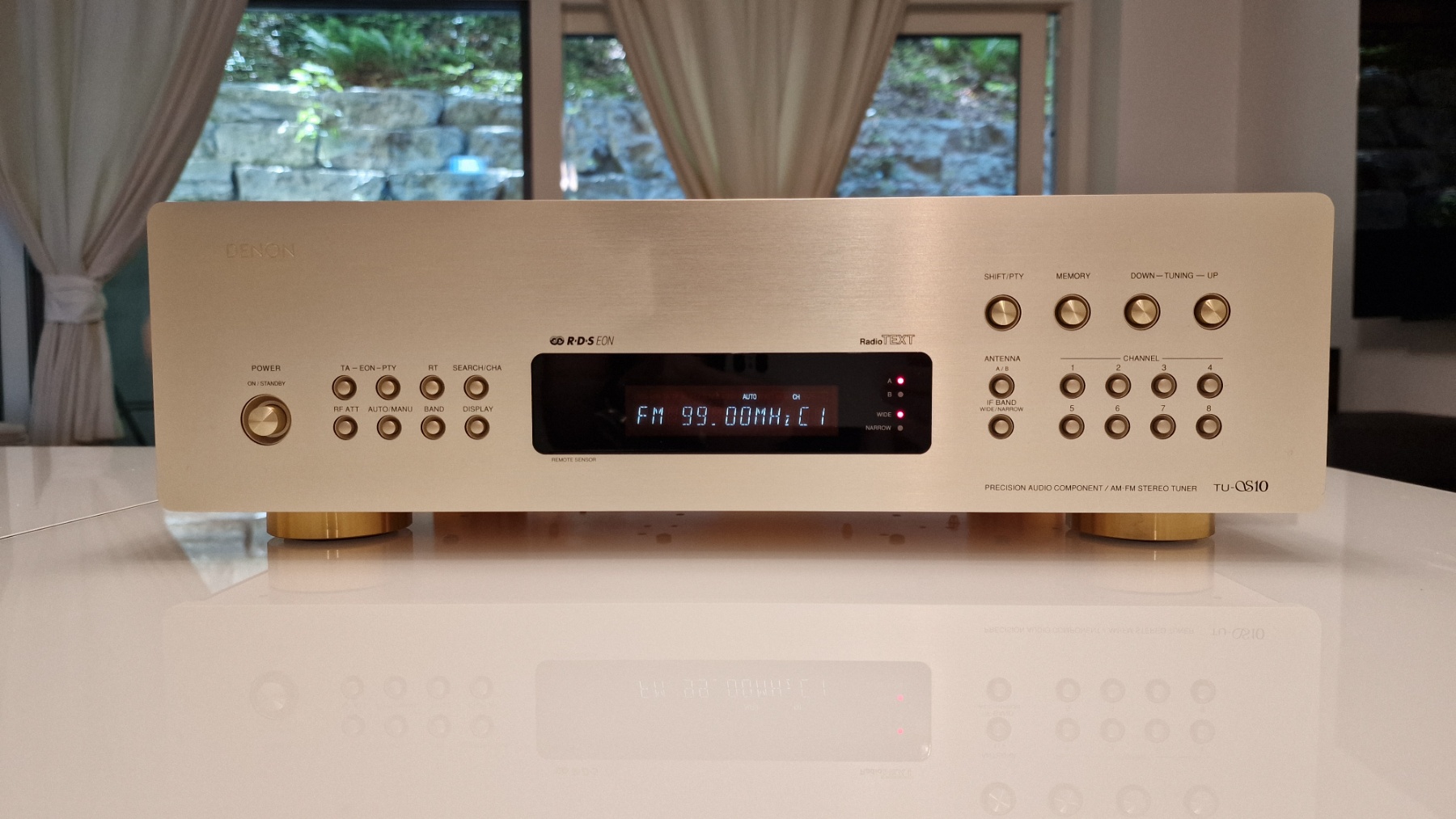

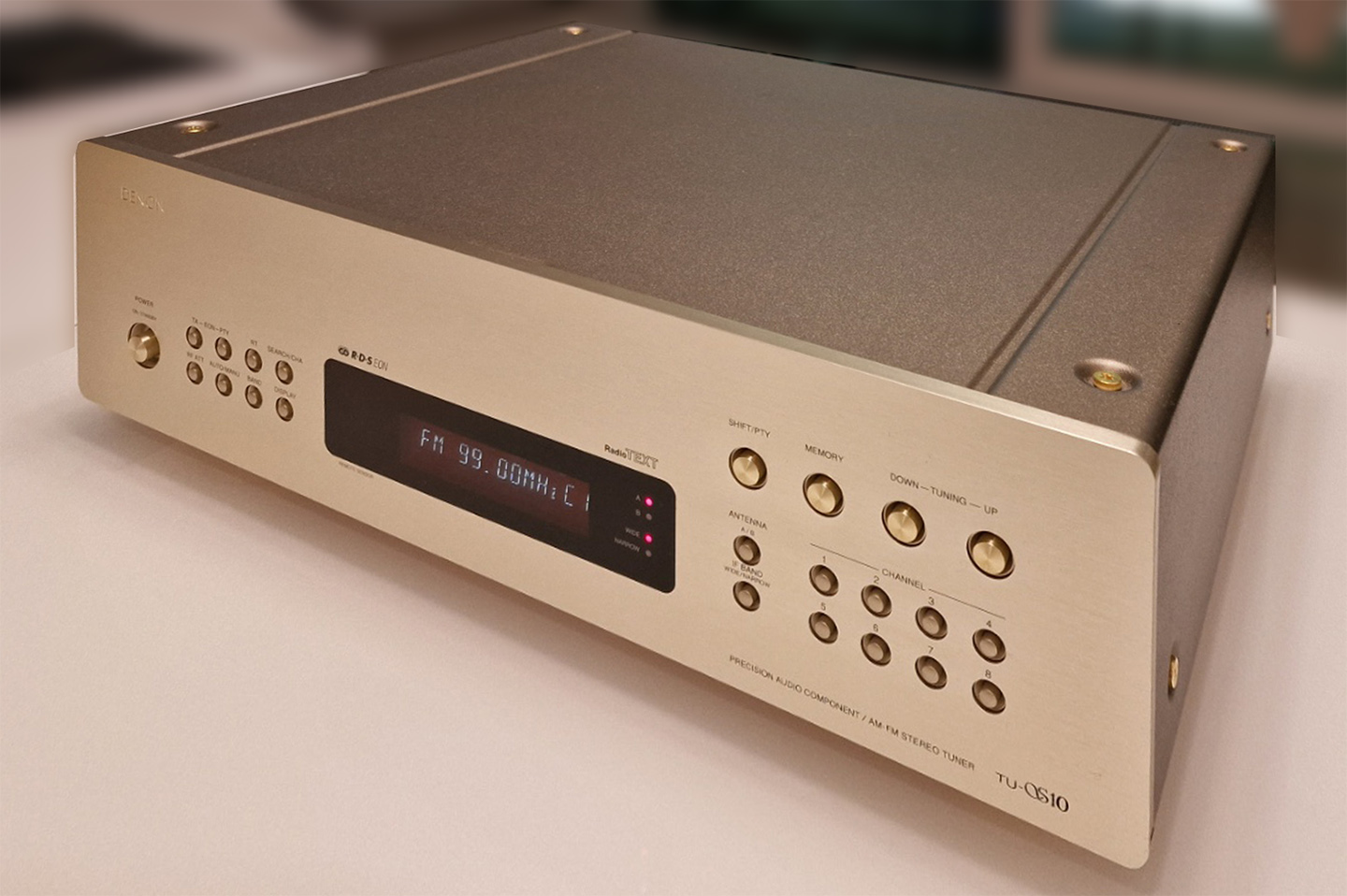

TU-S10 has a excellent finish and are heavy, it’s gold coloured aluminium fascia is very nice.

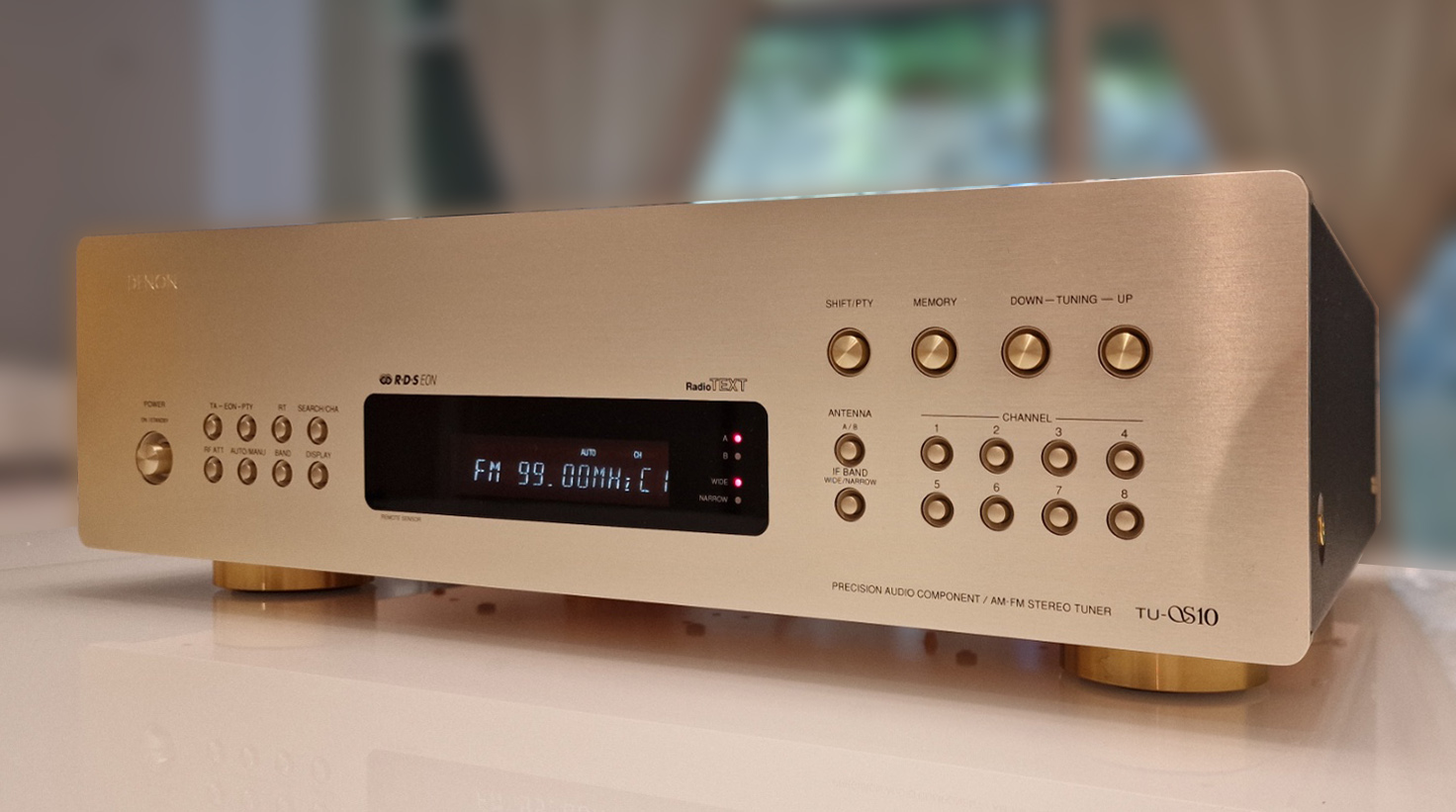

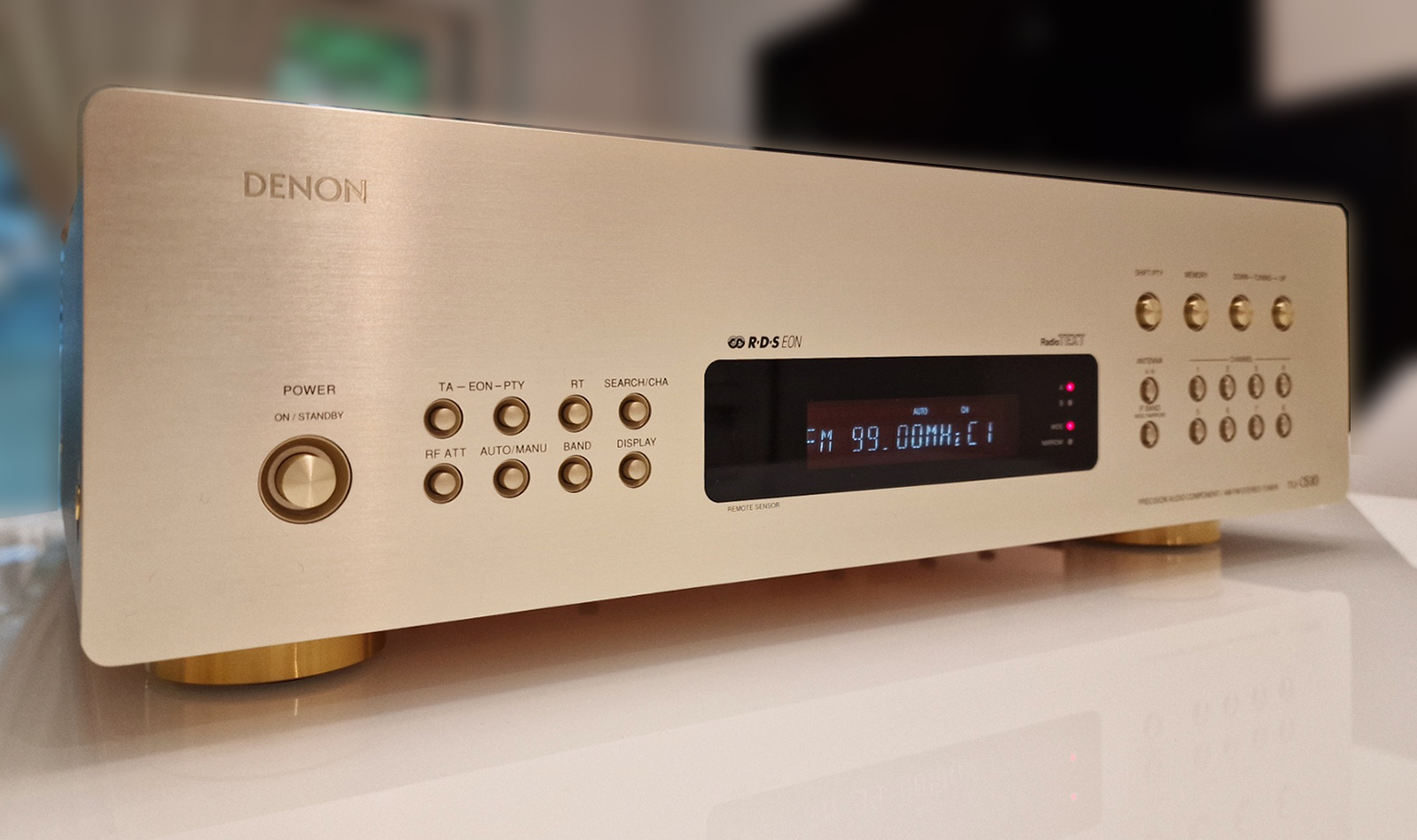

There are no tuning knob like the cheaper models, there are 19 buttons and a remotecontrol.

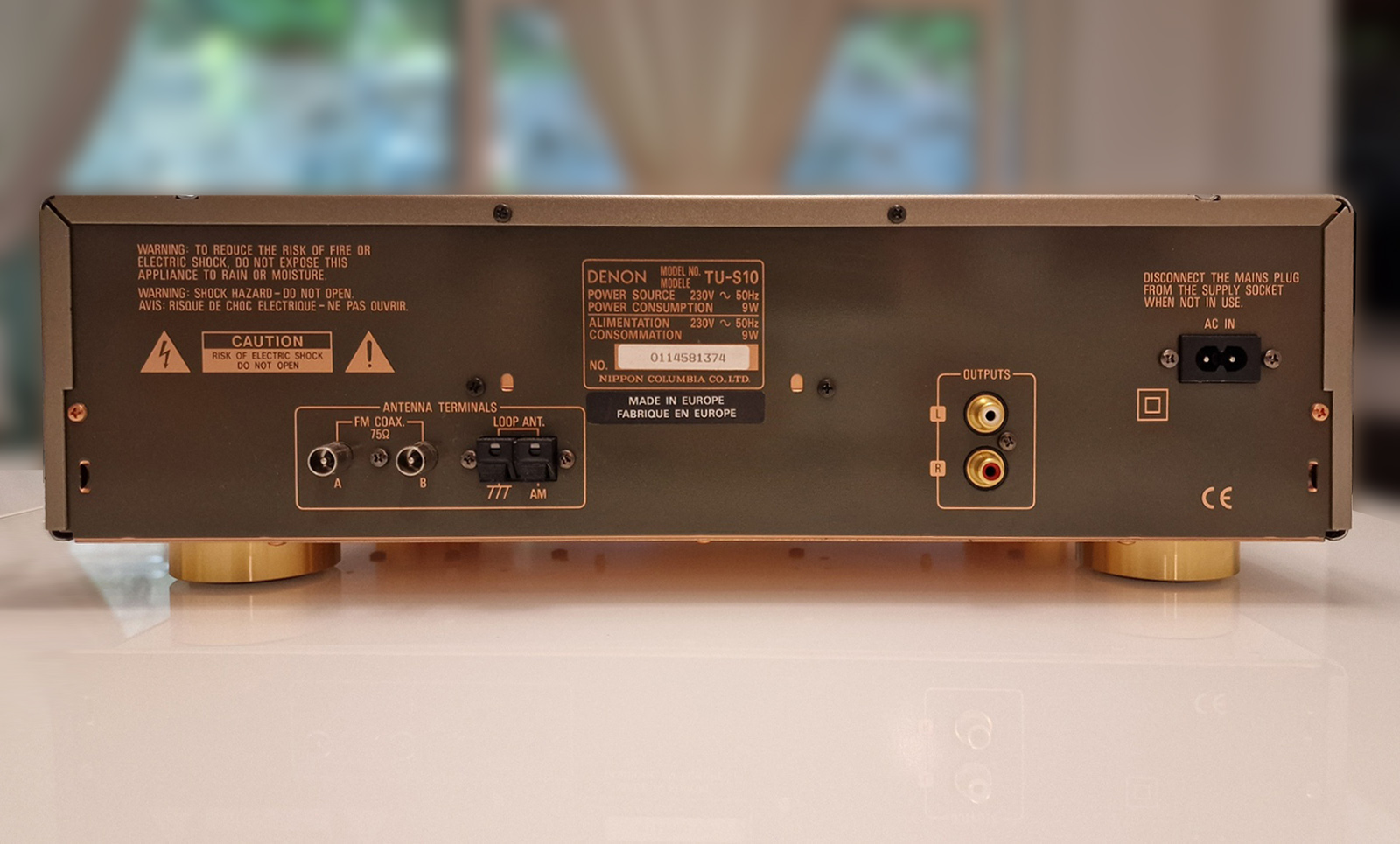

As extras compared to the basic tuner models from Denon there are RF Attenuator, IF Wide/Narrow and Attenna selector A/B. It also has copper screening and some tripple screening inside.
As other Denons it has full RDS functions including Radio Text wich shows detailed information of the current program with up to 64 characters if the broadcaster supports it.
I think this is a genious function since I can do my choice of listening to a program without a programlist!
Denon has the aquard habit of dividing the presets from A to E and 1 to 8 on each to a total of 40 presets.
When you turn the power on with the memory button pushed it program itself.
The powerbutton is secondary so you have to unplugg the powercord when you be away for a longer time.
But the memory should stay for a month acording to the manual.
The sound is very clean and detailed, the bas has power and the mids are warm, the highs has sharp transients.
The output impedance is 100Ohm but the output are’nt very strong, I had to use the volume control to adjust.
Overall my experience is of a calm sound but it doesn’t lack dynamics.
I have tried it with newslistening, classical and popmusic. To night I will try the AM quality.
I enjoy listening to radio very much, even to AM and can continue to listen to a Denon tuner when I sell my reciever and enjoy it’s convinience and sound!
Source: audioreview.com
