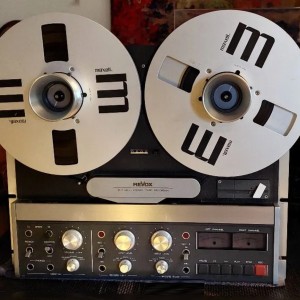

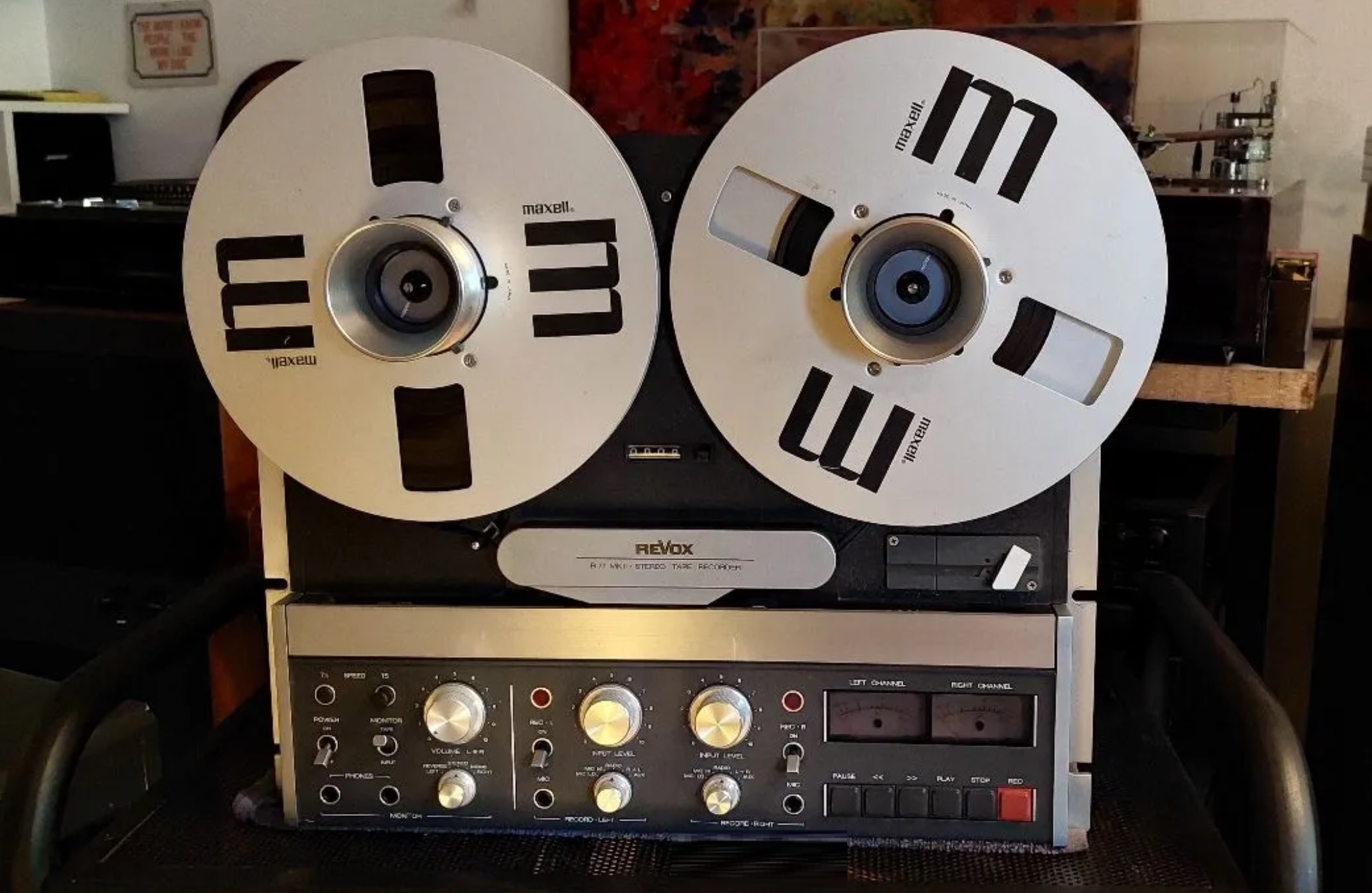

Revox B77 HS
The B77 MKII tape recorder was built from 1980-1998. A true classic and milestone in the audio world, like its predecessor the MKI. The B77 MKII is equipped with a built-in sound motor control (Vari-Speed Control) and revised audio and drive electronics. As a manufacturer, we have been reconditioning our Revox units with original spare parts for decades. You will receive the B77 MKII from us completely overhauled and refurbished. The impressive end result is a product as good as new.
Hotline Order:
Mon - Fri: 07AM - 06PM
(+43) 660 742 0707
details
dimensions
weight (kg): 17
depth (mm): 207
height (mm): 414
width (mm): 452
Drive
Three-motor drive 2 AC coil motors 1 AC sound motor electronically controlled
Noise-to-voltage ratio (according to ASA-A, measured over band)
60 dB, 63 dB, 64 dB, 67 dB
Frequency response over tape
30 Hz bis 16 kHz + 2 dB bis - 3 dB, 30 Hz bis 20 kHz + 2 dB bis - 3 dB
Tape speed
HS 19,05/38,1 cm/s, LS 4,75/9,5 cm/s, NS 9,5/19,05 cm/s, SLS 2,38/4,75 cm/s
Synchronisation fluctuation
9.5 cm/s < 0,10 %, 19 cm/s < 0,08 %, 38 cm/s < 0,06 %
power consumption
max. 80 VA
Equipment
11 ICs, 1 optocoupler, 4 triacs, 60 transistors, 33 diodes, 5 LEDs, 2 bridge rectifiers, 3 relays
Slip
max. 0,2 %
Rewind time
135 sec. for 1100m tape
Coil size
up to 26.5 cm (10.5 inch)
