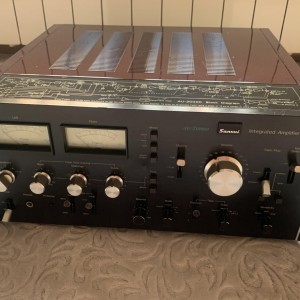

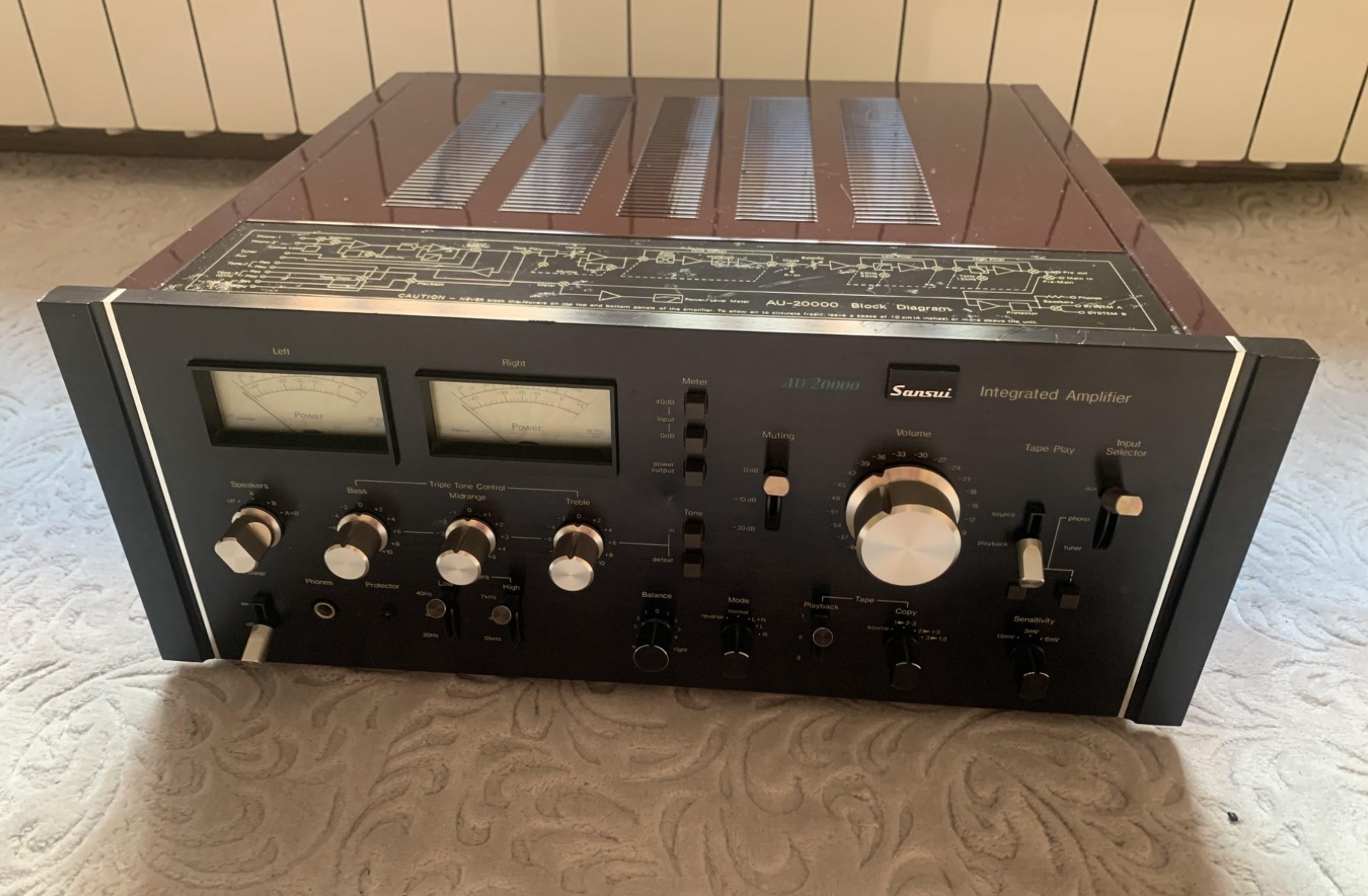

Sansui AU-20000
The Sansui AU-20000 is an integrated stereo amplifier delivering a continuous 170 watts, minimum RMS, per channel, both channels driven into 8 ohms, over 20 to 20KHz bandwidth - with no more than 0.05 % total harmonic distortion.
Hotline Order:
Mon - Fri: 07AM - 06PM
(+43) 660 742 0707
Description
The Sansui AU-20000 is an integrated stereo amplifier delivering a continuous 170 watts, minimum RMS, per channel, both channels driven into 8 ohms, over 20 to 20KHz bandwidth - with no more than 0.05 % total harmonic distortion.
Features include:
Eight-transistor equaliser with differential amps at initial stage gives an improved dynamic response, for an extremely accurate RIAA equalisation curve.
Triple protection circuits; temperature, DC voltage and ASO detection.
Selectable phono sensitivity/impedance, and a versatile tape monitor circuit make the AU20000 flexible and capable of handling a variety of recording and playback combinations.
Specifications
Power output: 170 watts per channel into 8Ω (stereo)
Frequency response: 10Hz to 50kHz
Total harmonic distortion: 0.05%
Damping factor: 80
Input sensitivity: 3mV (MM), 130mV (DIN), 130mV (line)
Signal to noise ratio: 70dB (MM), 80dB (DIN), 80dB (line)
Channel separation: 55dB (MM), 60dB (line)
Output: 130mV (line), 30mV (DIN), 0.7V (Pre out)
Speaker load impedance: 4Ω to 16Ω
Dimensions: 460 x 178 x 400mm
Weight: 23.6kg
Year: 1976
