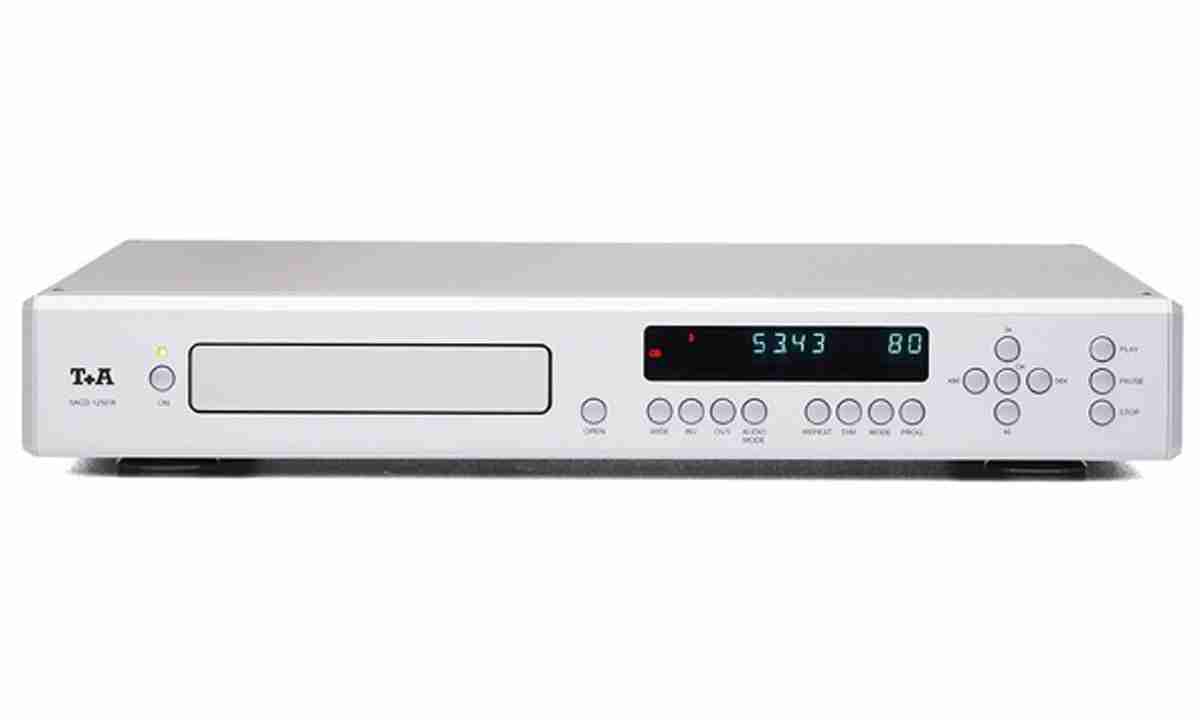

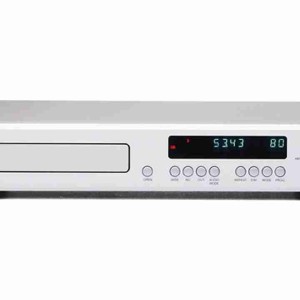

T+A Pulsar CD 1240R
The CD 1240 R offers even more sophisticated features than the CD 1230 R. The bass
range is assigned to multi-bit converters for their outstanding sonic qualities, whilst the
treble range is assigned to superior Sigma/Delta converters, now boasting 384 kHz / 24-bit
resolution. It is also equipped with a freely programmable signal processor (DSP) which
provides the basis for five different switchable oversampling filters (see CD 1230 R). As
standard it features one additional high-quality digital co-ax output, sophisticated mains
power supplies with separate high-performance transformers for the digital and analogue
sections, and additional copper shielding. It is difficult to believe, but the CD 1240 R sounds
even better than its renowned predecessor, the CD 1220 R.
Hotline Order:
Mon - Fri: 07AM - 06PM
(+49) 151 2354 4466
Specifications:
Mechanism Professional, close-tolerance linear disc mechanism
with triple-beam LDGU optics, 780 nm semi-conductor
laser, 2 mW power
Wow and flutter Quartz-controlled, not measurable
Mechanical construction Rigid all-metal case, multi-shielded sub-assemblies,
multi vibration de-coupled
D/A converter Double differential mode. Two 1-bit Sigma-Delta
converters with 256-times total oversamling and two
multibit DAC 20-bit co-linear converters in 2-way
circuit
Filter FIR kurz, FIR lang,
IIR-, Bezier-, Bezir-IIR-Filter
D/A converter type Double differential mode. Two 1-bit Sigma-Delta
converters with 256-times total oversamling and two
multibit DAC 20-bit co-linear converters in 2-way
circuit
Analogue filter Phase-linear Bessel filter, 3rd order with 60 kHz limit
frequency
Frequency response 20 Hz - 20 KHz
Distortion / intermodulation < 0,0015 %
Effective system dynamics 97 dB
Signal: noise ratio (A-weighted) 109 dB
Signal: noise ratio (unweighted) 106 dB
Digital output Datenformat: SP-DIF
1 x Opto = 600 nm/-18 dBm
CD 1240 RT+A - Produktarchiv
1 x Coax = 0,5 V / 75 Ohm
Analogue output nom. 2,6 Veff / 22 Ohm
Dimensions 7,5 x 44 x 39
Remote control Via R system or as non-standard version
Special features Completely separate analogue and digital mains
power supplies, own transformers for analogue and
digital sections
Colours Black (9005), silver aluminium, chrome (Non-
standard version)
