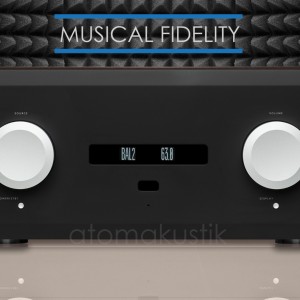

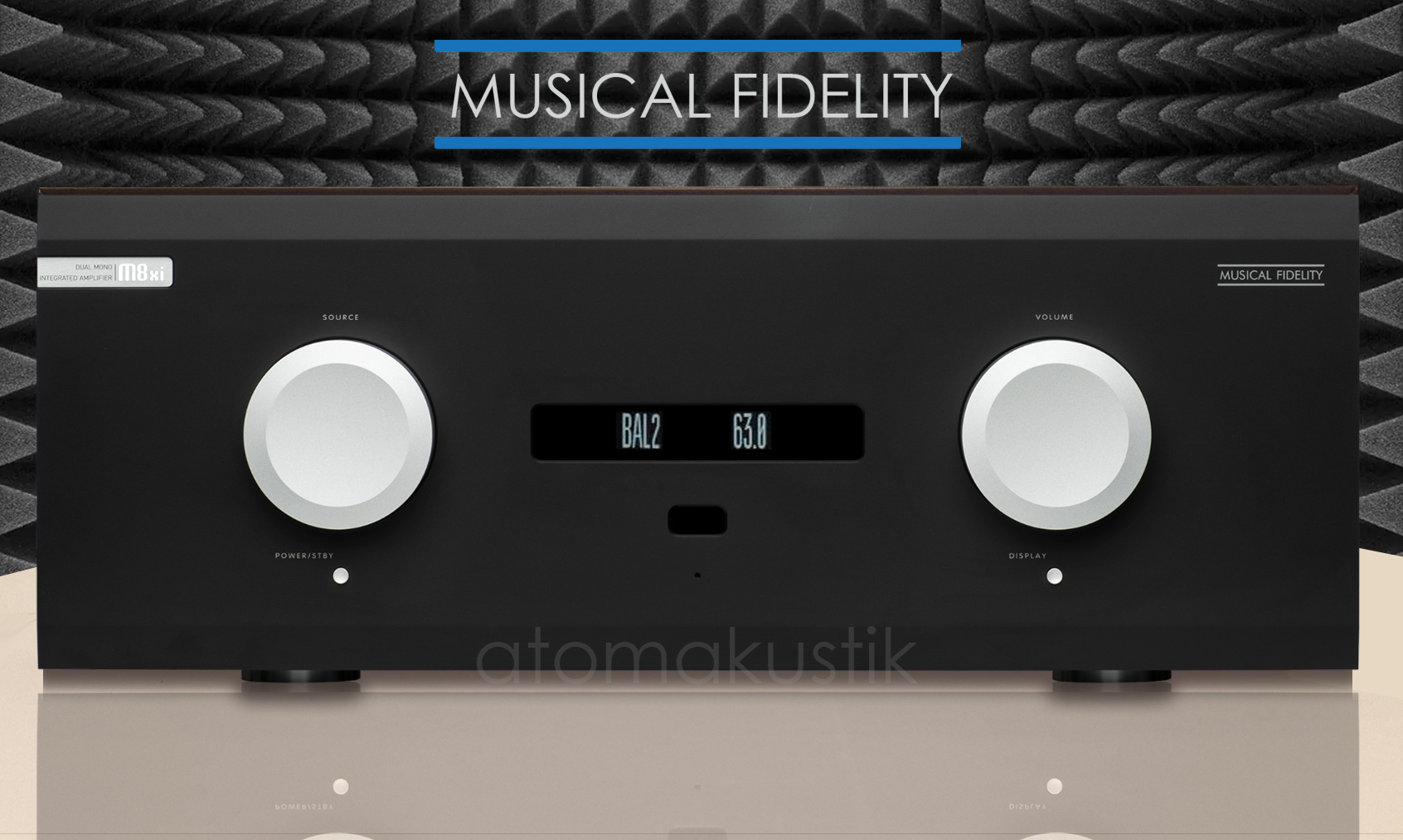

Musical Fidelity M8XI Amplifier
Amplifier
Power Output (20Hz - 20kHz): 550 Watts per channel into 8 Ohms (870W into 4 Ohms); Peak 1.6kW into 2 Ohms
Maximum output voltage: 67 Volts RMS, 20Hz to 20 kHz; onset of clipping (190 Volts peak-to-peak)
THD+N: <0.004% typical, 20Hz to 20 kHz (XLR)
Signal/noise ratio: > 86dB 'A'-weighted (XLR)
Input impedance: 25KΩ (RCA) , 50KΩ (XLR)
Frequency response: +0, –1dB, 10Hz to 100 kHz
Maximum peak output current: 105 Amps
Damping factor: 150
Output devices: 3+3 pairs (bridged arrangement) per channel
Inputs (analogue)
4 pairs line level RCA connectors
2 pairs line level XLR (balanced) connectors
Inputs (digital)
2x Coax S/PDIF up to 24 bit 192kHz
2x Optical S/PDIF up to 24 bit 96kHz
1x USB B Asynchronous USB up to 24 bit 192kHz
Outputs (analogue)
1 pair line level RCA fixed
1 pair pre-out RCA variable
1 pair line level XLR variable
Outputs (digital)
1x Coax S/PDIF up to 24 bit 192kHz
1x Optical S/PDIF up to 24 bit 96kHz
General
Dimensions (WxHxD): 485 x 185 x 510mm
Max. Consumption: 2000Watts
Weight: 46Kg
Hotline Order:
Mon - Fri: 07AM - 06PM
(+49) 151 2354 4466
The Musical Fidelity M8XI is a high-end integrated amplifier designed to deliver exceptional audio performance. As of my knowledge cutoff in September 2021, I can provide you with some general information about the M8XI based on its specifications and reputation at that time.
The M8XI is part of Musical Fidelity's flagship M8 series and is known for its powerful and dynamic sound reproduction. It boasts a robust power output of 550 watts per channel into 8 ohms, which allows it to drive a wide range of speakers with ease. This amplifier is equipped with a sophisticated dual-mono design, meaning it has separate power supplies and amplification circuits for each channel, minimizing crosstalk and interference.
One notable feature of the M8XI is its versatility. It offers multiple inputs, including a balanced XLR, an unbalanced RCA, and a USB input for connecting digital sources directly. This allows you to connect various audio devices such as CD players, turntables, streaming devices, and computers, providing flexibility in your audio setup. The amplifier also includes a built-in phono stage for vinyl enthusiasts.
In terms of construction and build quality, Musical Fidelity is known for using high-quality components and meticulous craftsmanship. The M8XI is designed to deliver clean and detailed sound reproduction while maintaining low distortion levels. It features a sturdy chassis and is built to last.
It's important to note that technology and product offerings may have evolved since my last update, so I recommend checking the official Musical Fidelity website or consulting trusted audio sources for the most up-to-date information on the M8XI amplifier.
